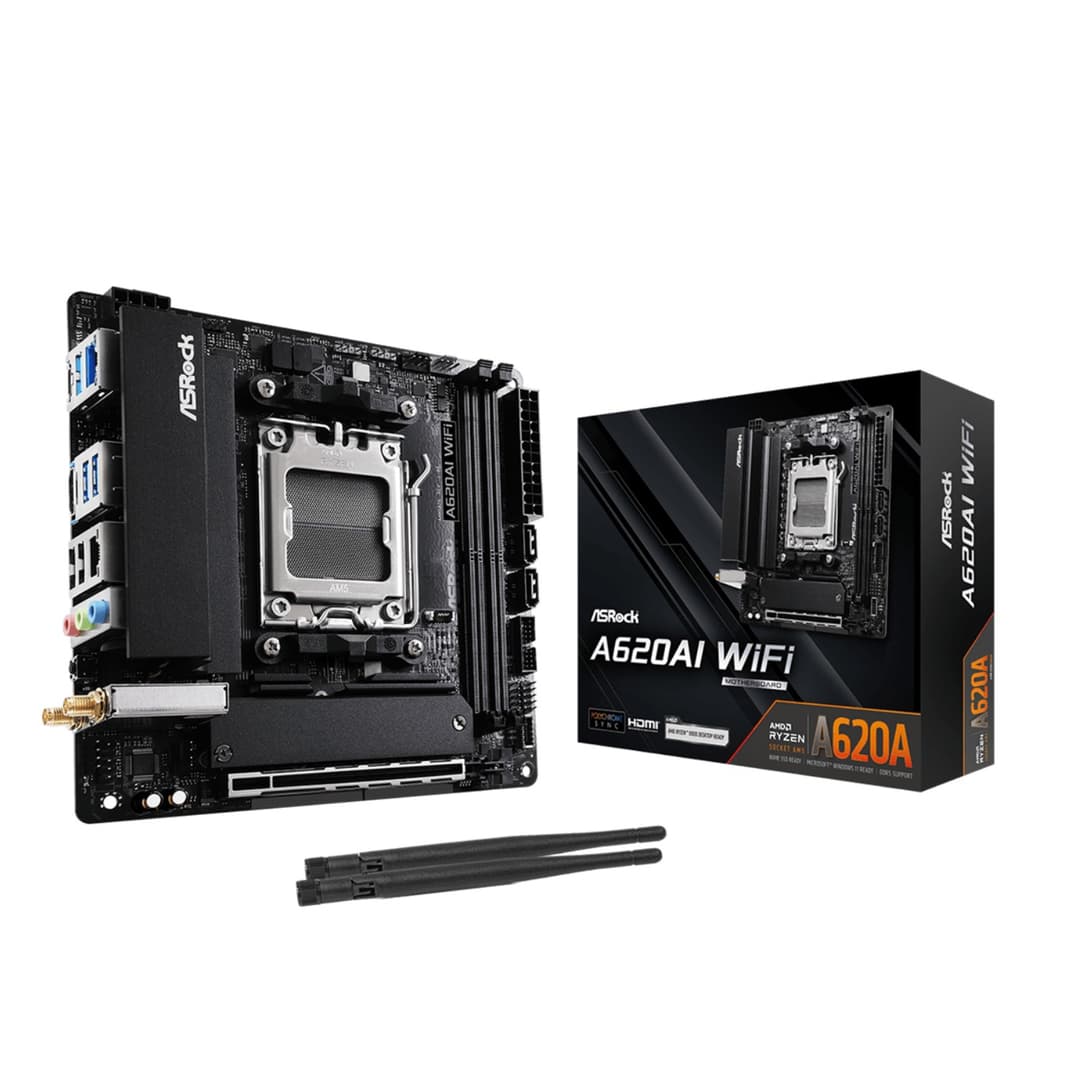

The ASRock A620AI WiFi is a compact Mini ITX motherboard designed for modern AMD Ryzen desktop systems. Built around the AMD A620A chipset and AM5 socket, it supports AMD Ryzen 7000 8000 and 9000 Series processors for a flexible and powerful small form factor PC build.
The motherboard supports dual channel DDR5 memory through two DIMM slots, with capacity up to 128GB and memory speeds up to 8200+ MT/s through overclocking. AMD EXPO and Intel XMP memory profiles are also supported for compatible memory modules.
Storage expansion is provided by two M.2 sockets and two SATA 6Gb/s connectors. The primary Hyper M.2 slot supports PCIe Gen4 x4 while the secondary Ultra M.2 slot supports PCIe Gen3 x4 and SATA storage devices.
For networking, the motherboard provides both 2.5 Gigabit LAN and Gigabit LAN connections. Integrated Wi-Fi 6E with extended 6GHz support and Bluetooth 5.2 provide fast wireless connectivity for compatible networks and peripherals.

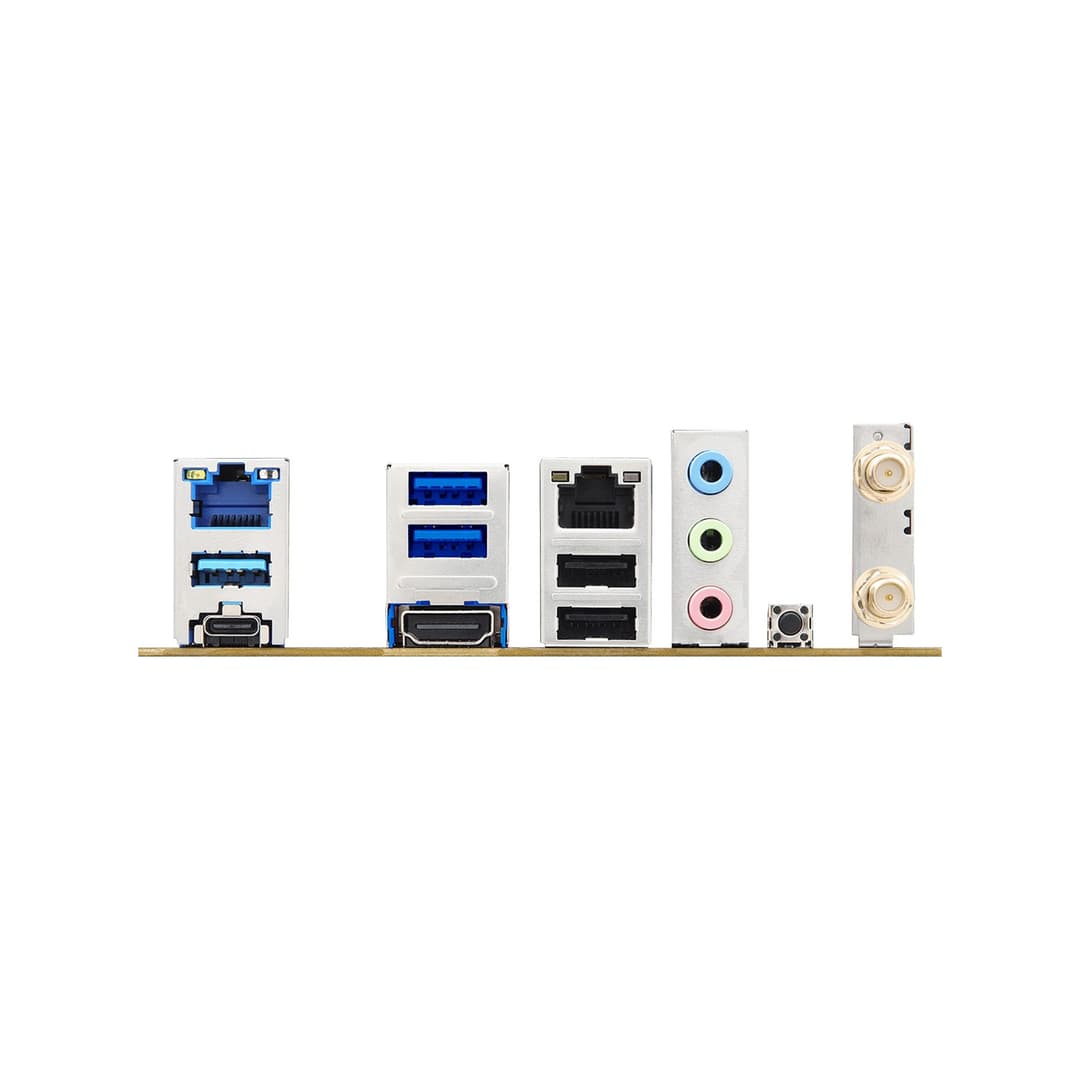

The A620AI WiFi also provides a PCIe 4.0 x16 slot for graphics cards and other compatible expansion hardware. Rear connectivity includes USB 3.2 Gen 2 Type-A and Type-C ports, while front headers provide additional USB connectivity including USB Type-C.
A Realtek ALC897 7.1-channel HD audio codec with Nahimic Audio provides enhanced audio support. BIOS Flashback and Auto Driver Installer features make system setup and firmware updates easier, while the compact Mini ITX design is ideal for space-conscious PC builds.
Full specification
What's inside
Audio
Realtek ALC897 7.1 HD Audio
Brand
Asrock
Chipset
AMD A620A
Colour
Black
Compatible CPU Brand
AMD Ryzen
Connectivity
Wi-Fi, Bluetooth
Dimensions
170 x 170 mm
EAN
4710483942747
Form Factor
Mini-ITX
Memory Slot Support
Up to 128 GB
Memory Slots
2 x DDR5 Slots
Memory Type
DDR5
Model
A620AI WIFI
Motherboard Displayport Connector
No
Motherboard Form Factor
Mini-ITX
Motherboard Hdmi Connector
1 x HDMI Port
Motherboard Internal USB Connectors
2 x USB 3.2 Gen 1 Type-A | 1 x USB 3.2 Gen 1 Type-C | 2 x USB 2.0
Motherboard M2 Slot
2x M.2
Motherboard Pcie X1 Slot
No
Motherboard Rear USB Ports
2 x USB 3.2 Gen 2 Type-A | 1 x USB 3.2 Gen 2 Type-C | 1 x USB 3.2 Gen 1 | 2 x USB 2.0
