- Basic Specifications - EAN
- 4719331868697
- Basic Specifications - Manufacturer's Part Number
- 127362
- External connectivity - Audio
- 3.5 mm jack x 3
- External connectivity - LAN
- Ethernet port x 1
- External connectivity - Other external connections
- RJ-45 port
- External connectivity - USB
- - USB 3.0 x 4- USB 2.0 x 6
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

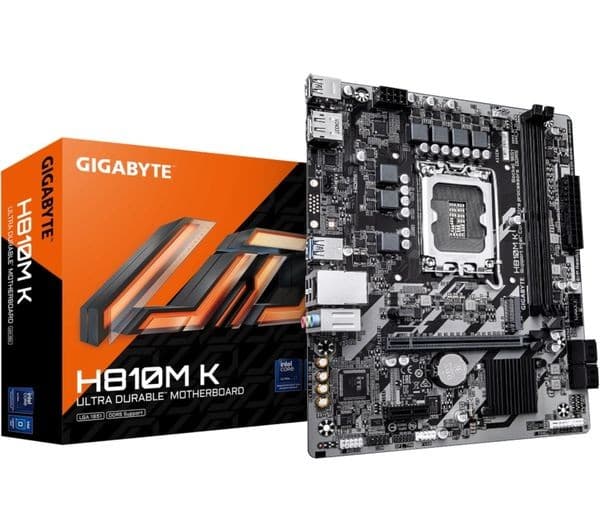

- - Gigabyte H810M K LGA1851 Motherboard- User manual- Quick installation guide- SATA cable x 1- I/O shield
- General - Colour
- Black
- General - Dimensions
- 70 x 185 x 226 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1300 g
- Internal connectivity - BIOS
- UEFI AMI BIOS
- Internal connectivity - Buttons
- Clear CMOS jumper
- Internal connectivity - Case
- - Front panel header- Front panel audio header
- Internal connectivity - Cooling
- - CPU fan header x 1- System fan headers x 1
- Internal connectivity - Expansion slots
- - PCIe 4.0 (x16) x 1 - PCIe 3.0 (x16) x 1
- Internal connectivity - Other internal connections
- - TPM header- USB 3.2 Gen 1 header- USB 2.0/1.1 header- M.2 Socket 3 connector
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin ATX x 1
- Internal connectivity - Sensors
- - Voltage sensor- Fan speed sensor- Temperature sensor- Water cooling flow rate sensor- Fan fail warning sensor- Fan speed control
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 1
- Internal connectivity - USB
- - USB Type-C x 1- USB 3.0 x 4- USB 2.0 x 6
- Overview - Chipset
- Intel® H810 Express
- Overview - Cooling features
- Fan cooling
- Overview - Form factor
- Micro ATX
- Overview - Memory slots
- 2 x DDR5 (Max RAM: 128 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 10, 11 (64-bit)
- Overview - Processor models supported
- Intel® Core™ Ultra processors
- Overview - Socket
- Intel® LGA1851
