- Basic Specifications - EAN
- 4711377422765
- Basic Specifications - Manufacturer's Part Number
- 128018

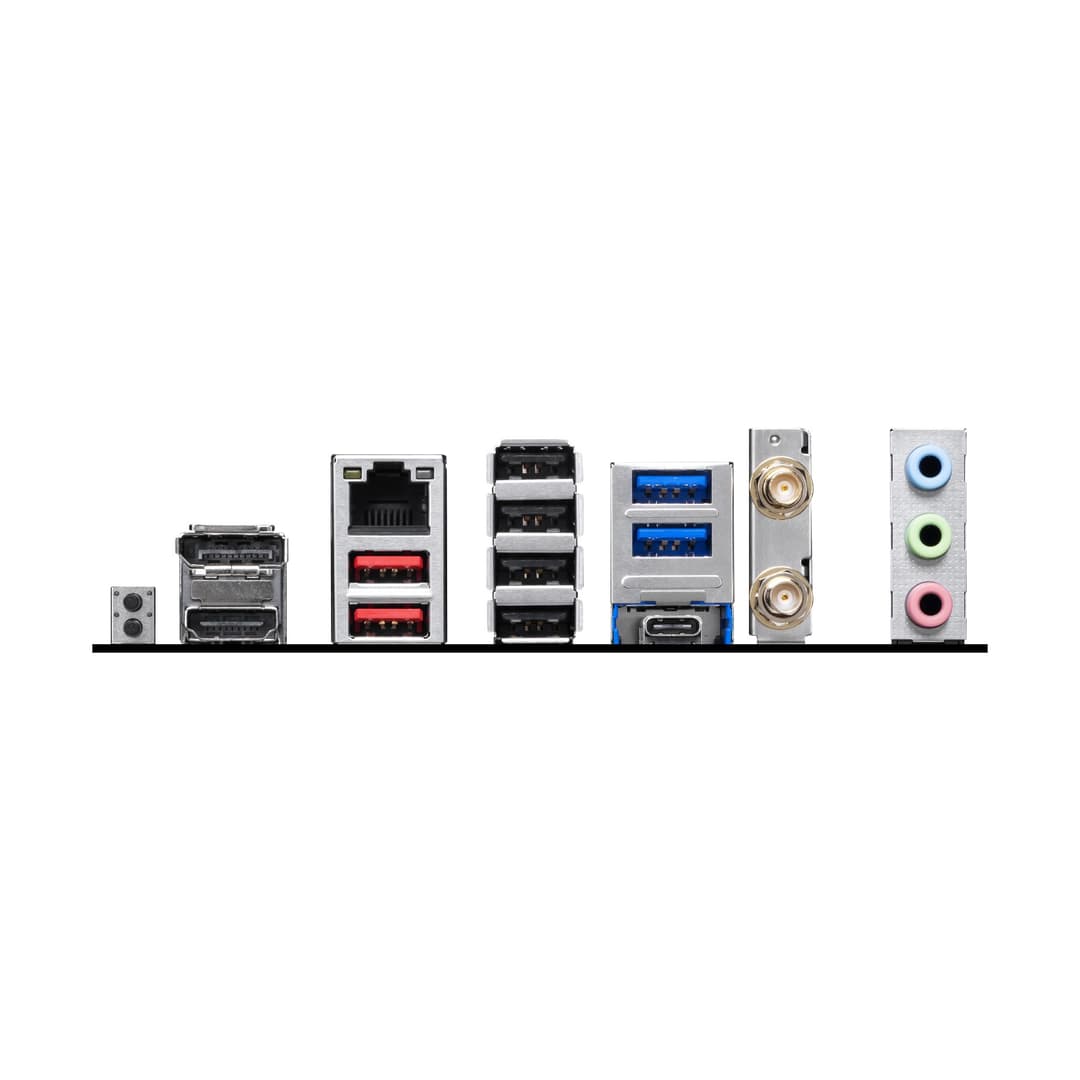

- External connectivity - Audio
- Realtek® ALC897 7.1-Channel High-Definition Audio
- External connectivity - LAN
- Realtek® 8126VB 5G LAN
- External connectivity - Other external connections
- 3.5 mm audio jack x 3- Optical S/PDIF x 1- Wi-Fi antenna connectors- Bluetooth
- External connectivity - USB
- USB Type-C x 1- USB 3.0 X 4- USB 2.0 X 4
- External connectivity - Video output
- HDMI x 1
- General - Box contents

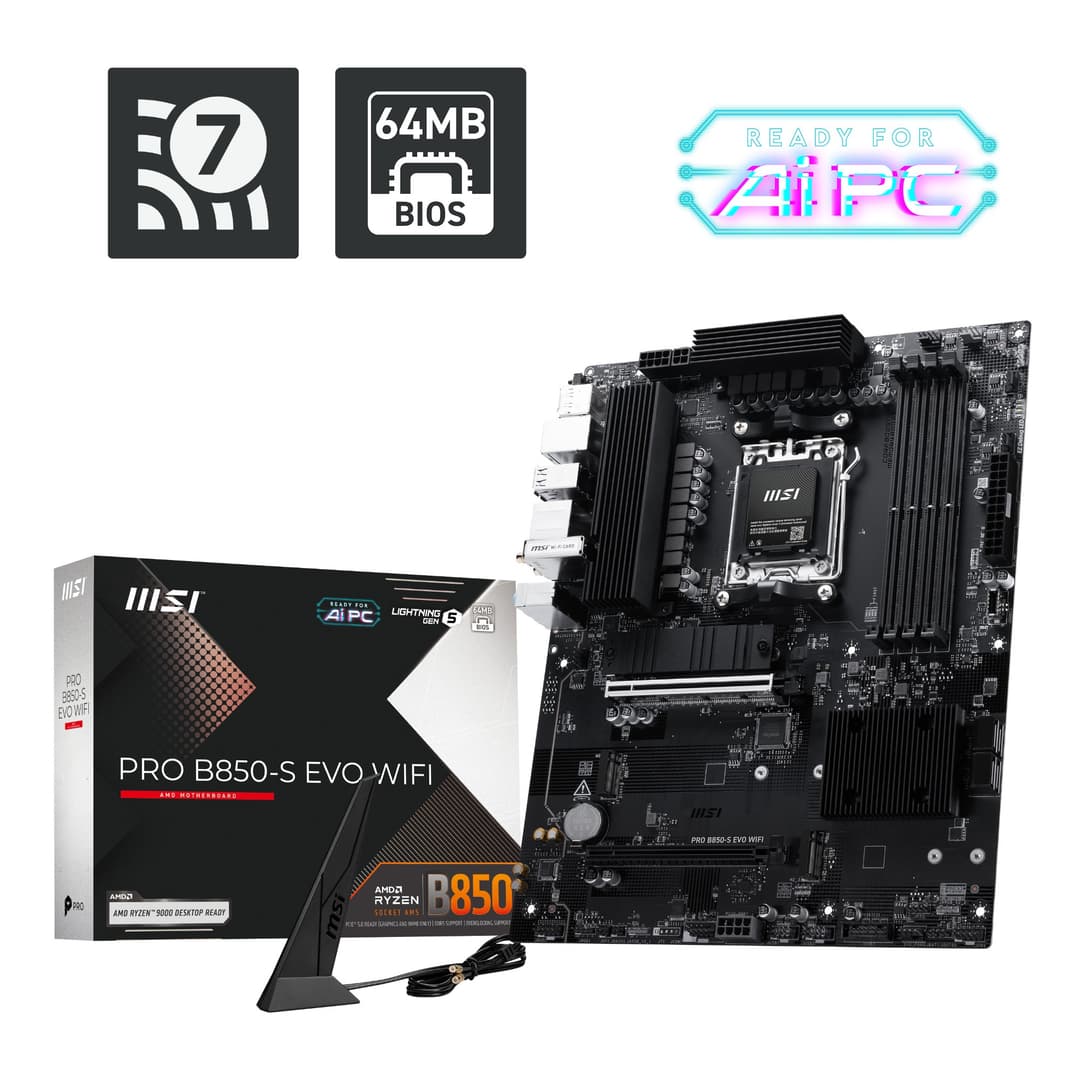

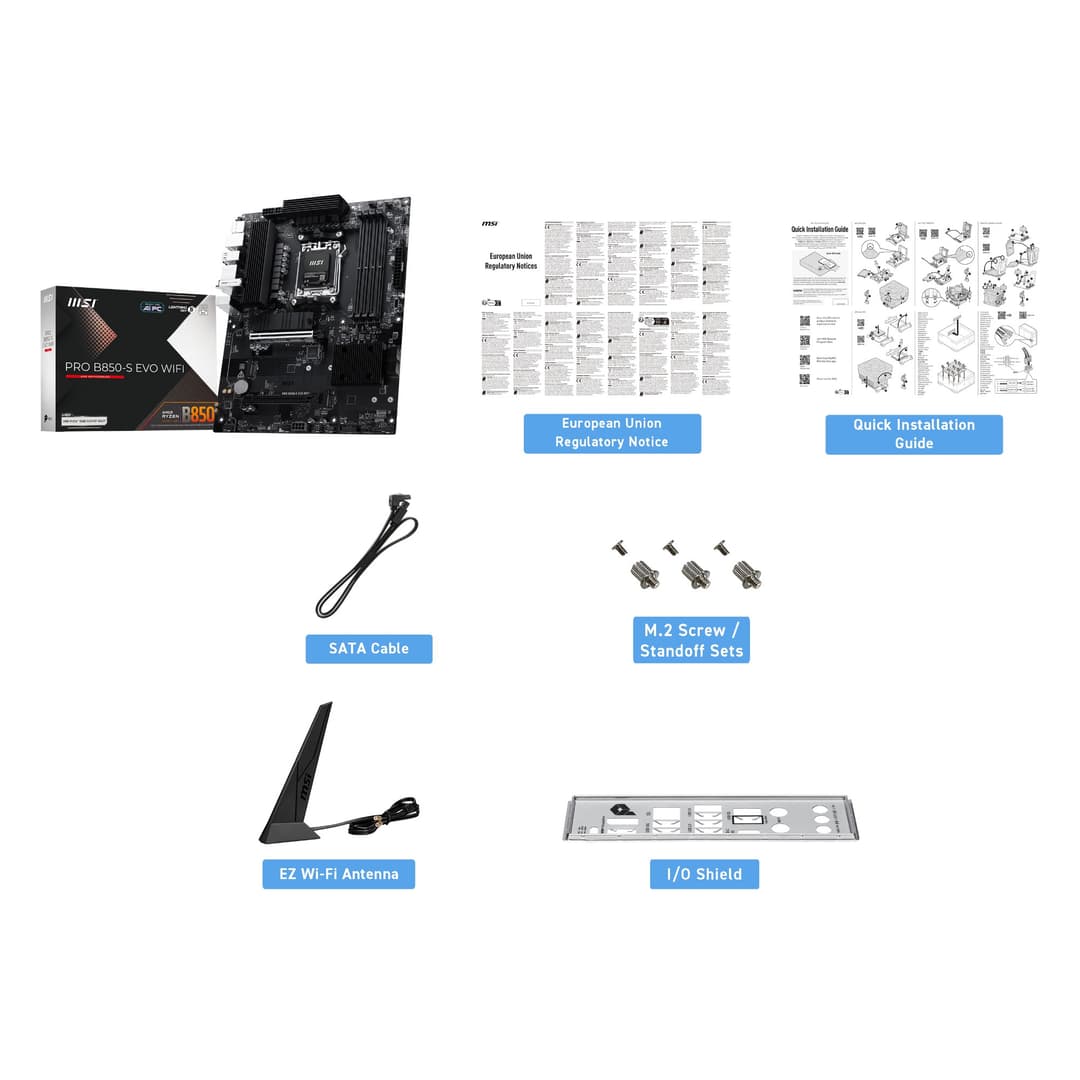

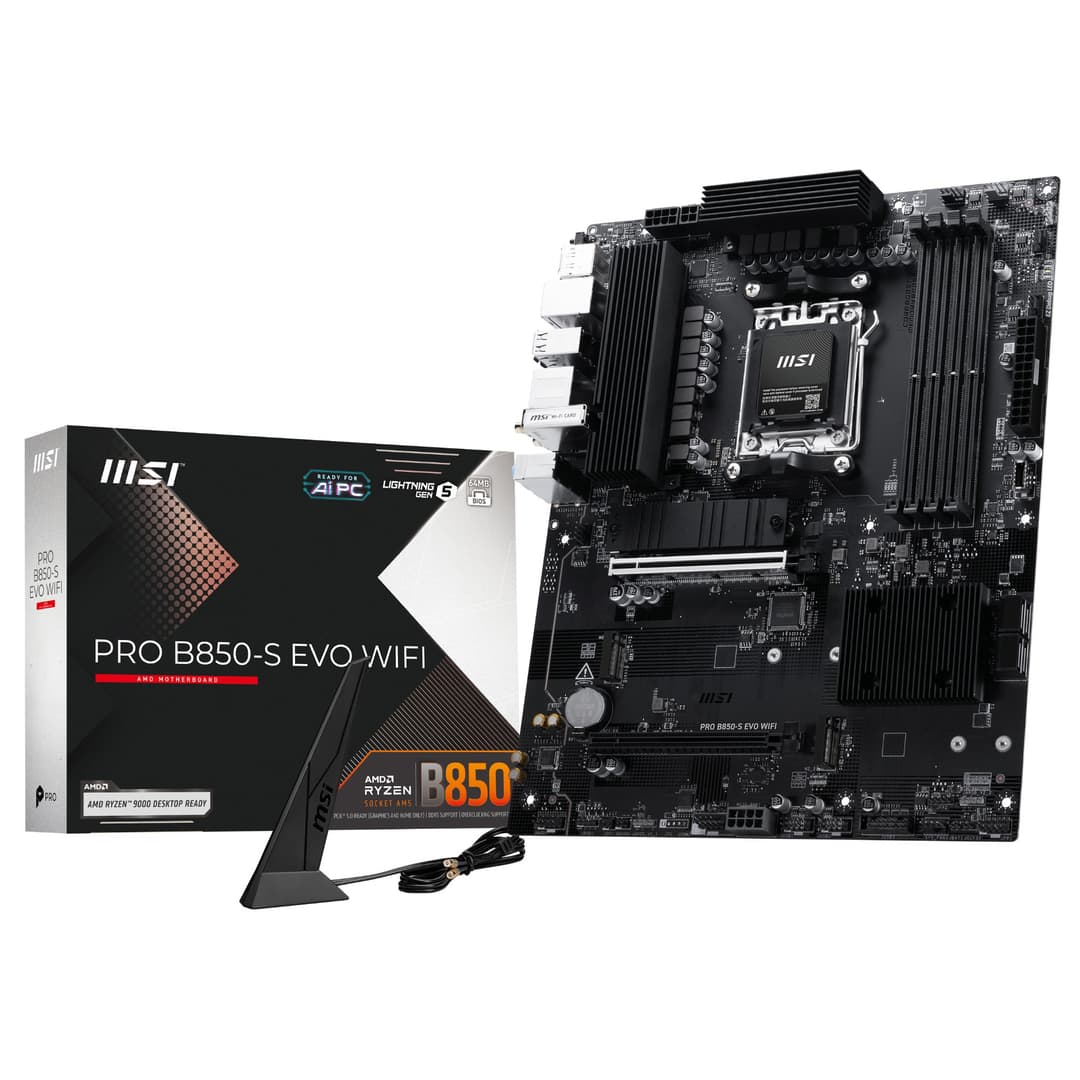

- MSI PRO B850-S EVO WIFI AMD AM5 Motherboard- Wi-Fi antenna- SATA cables- M.2 screws- Quick installation guide- User manual
- General - Colour
- Black
- General - Dimensions
- 305 x 244 mm (H x W)
- Internal connectivity - BIOS
- AMI UEFI BIOS
- Internal connectivity - Buttons
- Flash BIOS- Clear CMOS Button
- Internal connectivity - Cooling
- CPU fan 4-pin x 1- Combo Fan (Pump_Sys Fan) x 1- System fan x 4
- Internal connectivity - Expansion slots
- PCIe 5.0 (x16 slot) x 1- PCIe 4.0 (x4 slot) x 1- PCIe 3.0 (x1 slot) x 2
- Internal connectivity - Other internal connections
- Front Panel (JFP) x 2- Chassis Intrusion (JCI) x 2- Front Audio (JAUD) x 1- Com Port (JCOM) x 1- Tuning Controller connector(JDASH) x 1- Addressable V2 RGB LED connector (JARGB_V2) x 3- RGB LED connector(JRGB) x 1- TPM pin header(Support TPM 2.0) x 1
- Internal connectivity - Power
- Power Connector (ATX_PWR) x 1- Power Connector (CPU_PWR) x 2- Power Connector (PCIE_PWR 8pin) x 1
- Internal connectivity - Sensors
- Thermal sensors- Fan speed monitoring
- Internal connectivity - Storage slots
- SATA x 4 (6 GB/s)- M.2 x 3
- Internal connectivity - USB
- USB 2.0 (Rear) x 4- USB 2.0 (Front) x 4- USB 5Gbps Type A (Rear) x 2- USB 5Gbps Type A (Front) x 2- USB 10Gbps Type A (Rear) x 2- USB 10Gbps Type C (Rear) x 1- USB 10Gbps Type C (Front) x 1
- Overview - Chipset
- AMD B850
- Overview - Cooling features
- Fan cooling- Liquid cooling- Extended heatsink- VRM heatsink- MOSFET thermal pads- M.2 Shield Frozr II- Enlarged chipset heatsink- Additional choke thermal pad- FROZR cooling system- AI / smart cooling
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Multi-GPU support
- No
- Overview - Operating systems supported
- Windows 11 or later
- Overview - Processor models supported
- AMD Ryzen 9000 / 8000 / 7000 Series desktop processors
- Overview - Socket
- AMD AM5
