- Basic Specifications - EAN
- 4719072925024
- Basic Specifications - Manufacturer's Part Number
- 121220

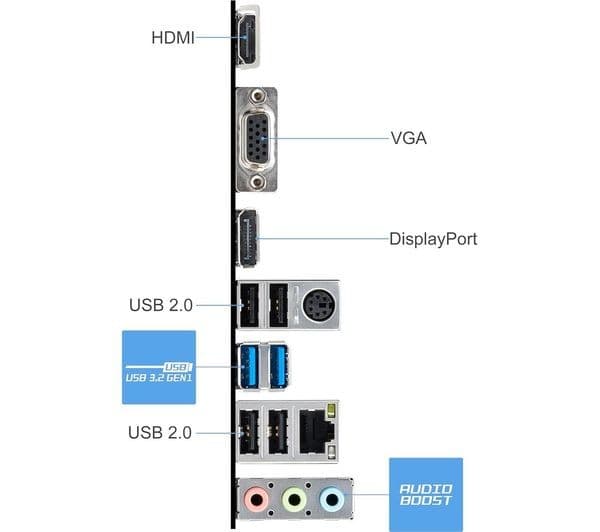

- External connectivity - Audio
- 3.5 mm jack x 1
- External connectivity - Video output
- - HDMI 2.1 x 1- DisplayPort 1.4 x 1- VGA x 1

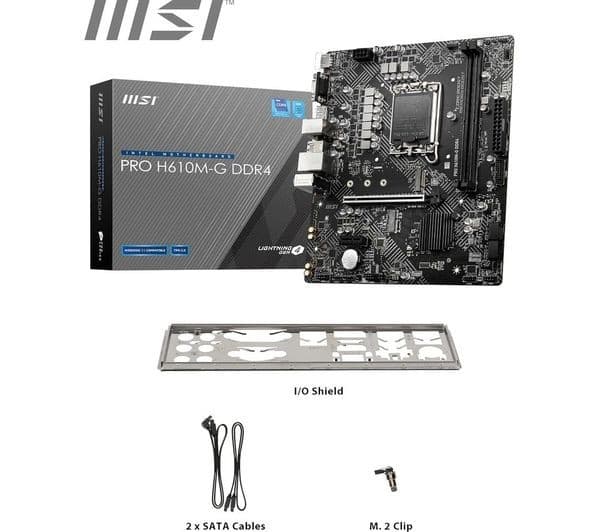

- General - Box contents
- - MSi PRO H610M-G DDR4 Motherboard- Quick installation guide- M.2 clip- SATA cables x 2- IO shield- Driver disk- MSi case badge
- General - Colour
- Black
- General - Dimensions
- 55 x 202 x 236 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 0.7 kg
- Internal connectivity - Buttons
- - Power button
- Internal connectivity - Cooling
- - 4-pin CPU fan connector x 1- 4-pin system fan connector x 1
- Internal connectivity - Expansion slots
- - PCIe 3.0 (x16 slot) x 1- M.2 with E-key x 1
- Internal connectivity - Other internal connections
- - Front panel audio connector x 1- System panel connectors x 2- Chassis Intrusion connector x 1- TPM module connector x 1- Serial port connector x 1- Clear CMOS jumper x 1
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin 12V ATX x 1
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s) - M.2 Gen3 (32Gbps slot) x 1
- Internal connectivity - USB
- - USB 3.2 x 4- USB 2.0 x 6
- Overview - Chipset
- Intel® H610

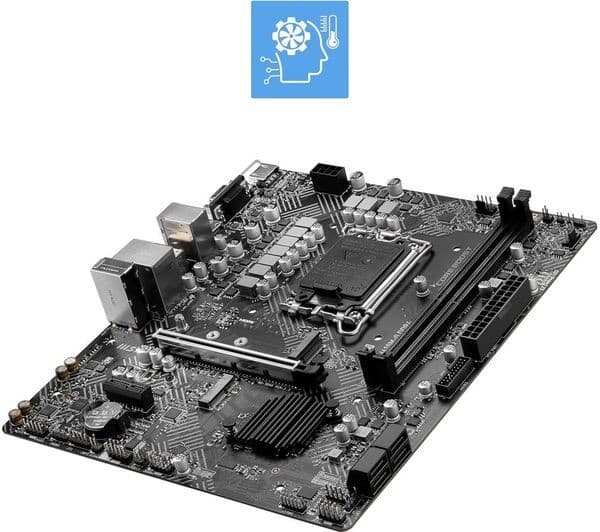

- Overview - Cooling features
- - Frozr AI cooling
- Overview - Form factor
- ATX
- Overview - Memory slots
- 2 x UDIMM (Max RAM: 64 GB)
- Overview - Memory standard
- DDR4
- Overview - Operating systems supported
- Windows 11 or later
- Overview - Processor models supported
- Intel® Core™ 14th/ 13th/ 12th Gen Processors
- Overview - Socket
- Intel® LGA1700
