- Basic Specifications - Bus Type
- SATA 6Gb/s
- Basic Specifications - Channel Qty
- 1
- Basic Specifications - Data Transfer Rate
- 6 Gbit/s
- Basic Specifications - Designed For
- P/N: BRACKET125PT, BRACKET125PTP, BRACKET225PT, BRACKET425F, SATDOCK5U3ER, SATERASER4, SDOCK1EU3P, SDOCK1EU3P2, SDOCK4U313, SDOCKU313, SDOCKU313E, USB312SAT3, USB31C2SAT3, USB31CSAT3CB
- Basic Specifications - Device Type
- Storage controller - internal
- Basic Specifications - Dimensions (WxDxH)
- 7 cm x 10 cm x 0.7 cm
- Basic Specifications - EAN
- 0065030855624
- Basic Specifications - Interface
- SATA 6Gb/s
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- SAT32MSAT257
- Basic Specifications - Model

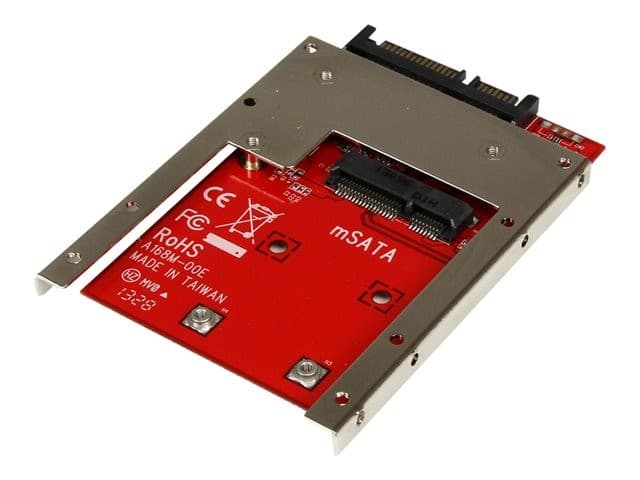

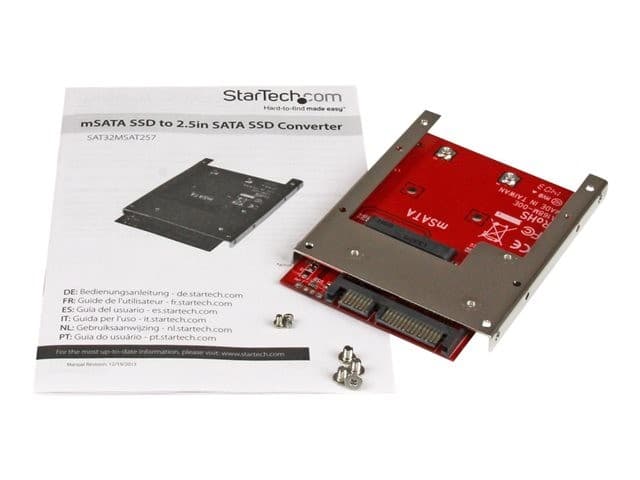

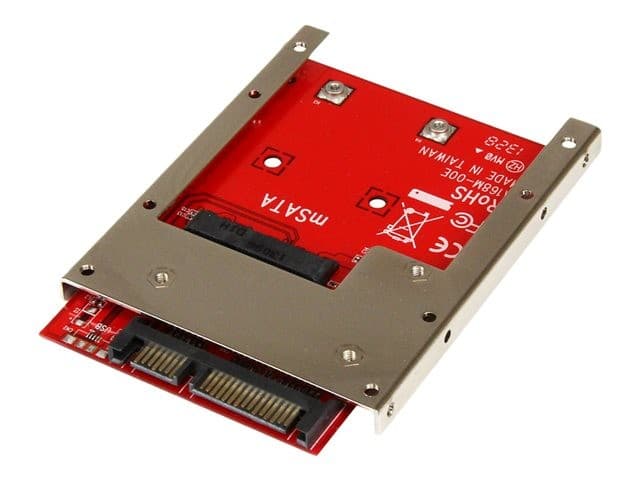

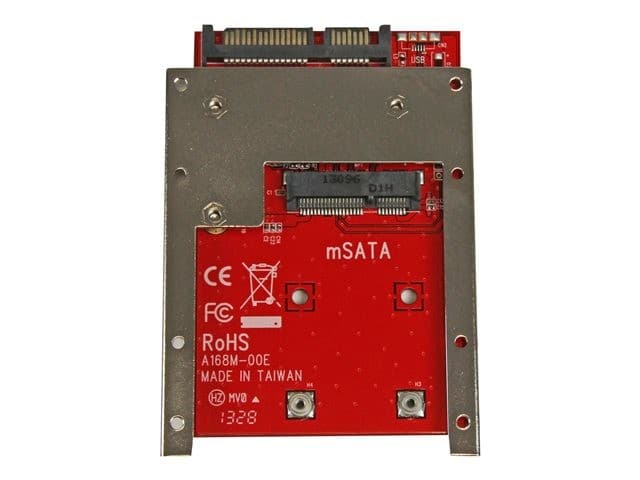

- StarTech.com mSATA SSD to 2.5in SATA Adapter Converter - mSATA to SATA Adapter for 2.5in bay with Open Frame Bracket and 7mm Drive Height (SAT32MSAT257)
- Basic Specifications - Product Description
- StarTech.com mSATA SSD to 2.5in SATA Adapter Converter - mSATA to SATA Adapter for 2.5in bay with Open Frame Bracket and 7mm Drive Height (SAT32MSAT257) - storage controller - SATA 6Gb/s - SATA 6Gb/s
- Basic Specifications - Supported Devices
- Hard drive, solid state drive
- Basic Specifications - Weight
- 100 g
- Compatibility Information - Designed For
- P/N: BRACKET125PT, BRACKET125PTP, BRACKET225PT, BRACKET425F, SATDOCK5U3ER, SATERASER4, SDOCK1EU3P, SDOCK1EU3P2, SDOCK4U313, SDOCKU313, SDOCKU313E, USB312SAT3, USB31C2SAT3, USB31CSAT3CB
- Dimensions & Weight - Depth
- 10 cm
- Dimensions & Weight - Height
- 0.7 cm
- Dimensions & Weight - Weight
- 100 g
- Dimensions & Weight - Width
- 7 cm
- Environmental Parameters - Max Operating Temperature
- 85 °C
- Environmental Parameters - Min Operating Temperature
- -40 °C
- Expansion / Connectivity - Connections
- 1 - 52 pin mini-SATA
- Expansion / Connectivity - Interfaces
- 1 x SATA 6Gb/s - SATA power
- General - Device Type
- Storage controller - internal
- General - Host Bus
- SATA 6Gb/s
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Compliant Standards
- FCC, RoHS
- Miscellaneous - Mounting Kit
- Included
- Storage Controller - Channel Qty
- 1
- Storage Controller - Data Transfer Rate
- 6 Gbit/s
- Storage Controller - Interface
- SATA 6Gb/s
- Storage Controller - Supported Devices
- Hard drive, solid state drive
