- Basic Specifications - Capacity
- Maximum number of configured SSIDs: 16
- Basic Specifications - Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
- Basic Specifications - Device Type
- Radio access point
- Basic Specifications - Dimensions (WxDxH)
- 28.04 cm x 10.65 cm x 5.68 cm
- Basic Specifications - EAN
- 6935364010249
- Basic Specifications - Form Factor
- Wall / pole mountable - outdoor, indoor
- Basic Specifications - Frequency Band
- 2.4 GHz, 5 GHz
- Basic Specifications - Included Accessories
- Pole/wall mount kit, passive PoE adapter, waterproof kits, waterproof aerial
- Basic Specifications - Manufacturer's Part Number
- EAP610-Outdoor
- Basic Specifications - Model
- TP-Link Omada EAP610-Outdoor
- Basic Specifications - Performance
- Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps
- Basic Specifications - Power Over Ethernet (PoE) Supported
- PoE+
- Basic Specifications - Product Description
- TP-Link Omada EAP610-Outdoor - radio access point - Wi-Fi 6 - cloud-managed
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 70 °C
- Environmental Parameters - Min Operating Temperature
- -30 °C
- Expansion / Connectivity - Interfaces

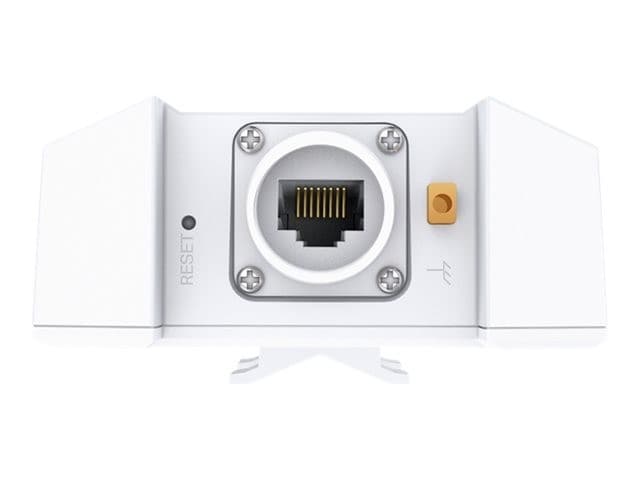

- 1 x 1000Base-T (PoE+) - RJ-45
- General - Depth
- 10.65 cm
- General - Device Type
- Radio access point
- General - Height
- 5.68 cm
- General - Ruggedized Design
- Outdoor, indoor
- General - Width
- 28.04 cm
- Miscellaneous - Compliant Standards
- FCC, RoHS, IP67
- Miscellaneous - Included Accessories
- Pole/wall mount kit, passive PoE adapter, waterproof kits, waterproof aerial
- Networking - Authentication Method
- Secure Shell (SSH), Radio Service Set ID (SSID)
- Networking - Capacity
- Maximum number of configured SSIDs: 16
- Networking - Cloud-Managed
- Yes
- Networking - Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
- Networking - Connectivity Technology
- Wireless
- Networking - Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
- Networking - Encryption Algorithm
- WPA-Enterprise, WPA2-Enterprise, WEP, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal
- Networking - Features
- Syslog support, E-mail alert, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, weatherproof, rogue access point detection, Captive Portal, 15KV ESD Protector, 802.1x authentication, Transmit Power Control (TPC), MU-MIMO technology, beamforming technology, band steering, rate limit, Wireless Scheduler, Fast Roaming, seamless roaming, Airtime Fairness, Zero-touch provisioning (ZTP), dustproof, waterproof, 6KV lightning protection, schedule reboot, load balance network mode, Omada Mesh technology
- Networking - Form Factor
- Wall / pole mountable
- Networking - Frequency Band
- 2.4 GHz, 5 GHz
- Networking - Line Coding Format
- OFDM, 1024 QAM, OFDMA
- Networking - Performance
- Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps
- Networking - Remote Management Protocol
- SNMP 1, SNMP 2c, HTTP, SSH
- Networking - Spread Spectrum Method
- OFDM, OFDMA
- Networking - Status Indicators
- Status
- Networking - Wi-Fi Rating
- AX1800
- Power - Power Over Ethernet (PoE) Supported
- PoE+
