- Basic Specifications - Capacity
- 4 TB
- Basic Specifications - Data Transfer Rate
- 600 MBps
- Basic Specifications - Dimensions (WxDxH)
- 69.85 mm x 100.2 mm x 7 mm
- Basic Specifications - EAN
- 0718037903620
- Basic Specifications - Features
- 24x7 continuous operation, 3D NAND Technology
- Basic Specifications - Form Factor
- 2.5"
- Basic Specifications - Interface
- SATA 6Gb/s
- Basic Specifications - Manufacturer Warranty
- 5-year warranty
- Basic Specifications - Manufacturer's Part Number
- WDS400T2R0A-68CKB0
- Basic Specifications - Model

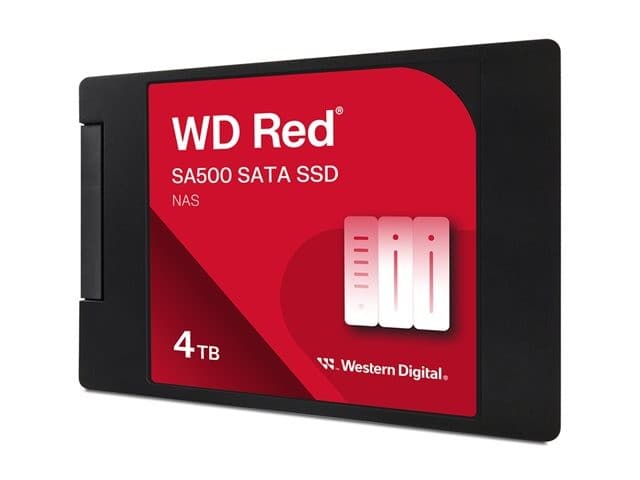

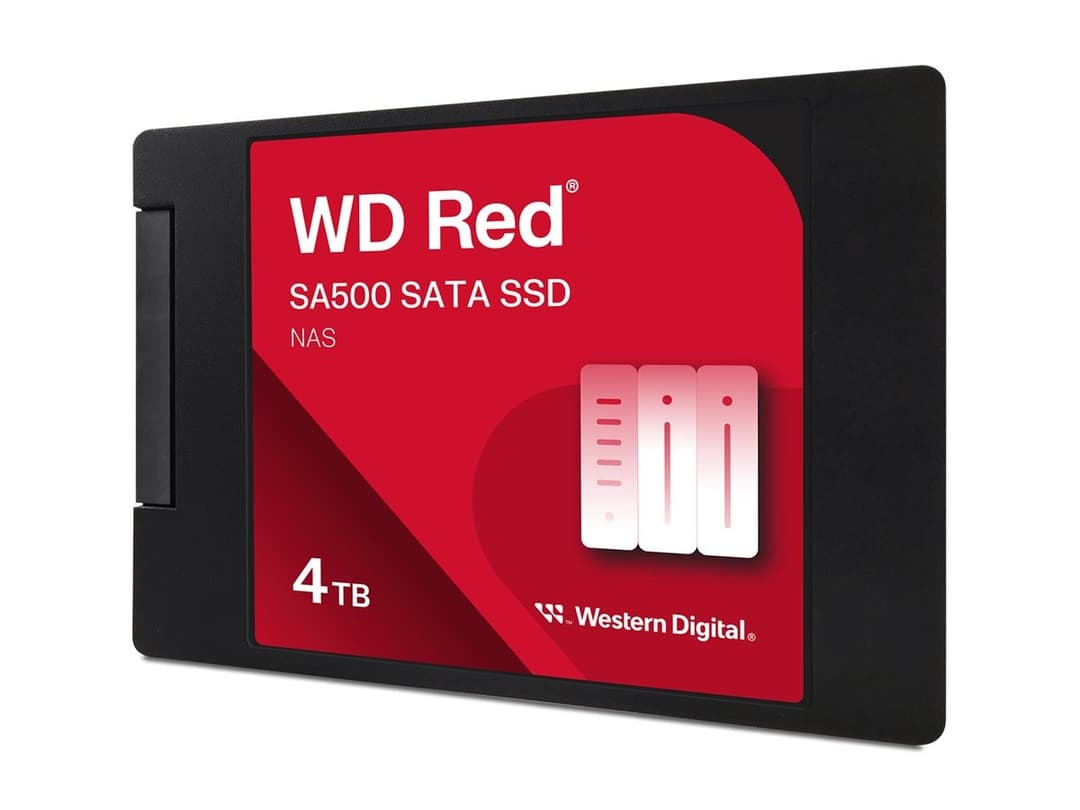

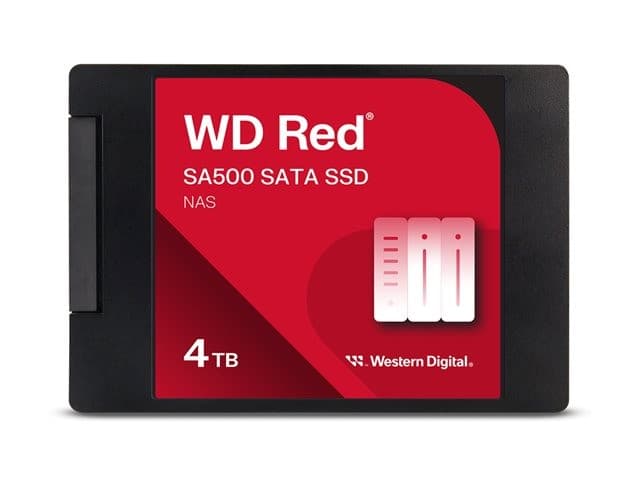

- WD Red SA500 WDS400T2R0A-68CKB0
- Basic Specifications - Product Description
- WD Red SA500 WDS400T2R0A-68CKB0 - SSD - 4 TB - SATA 6Gb/s
- Basic Specifications - Type
- Solid state drive - internal
- Basic Specifications - Weight
- 37.4 g
- Environmental Parameters - Max Operating Temperature
- 70 °C
- Environmental Parameters - Max Storage Temperature
- 85 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Min Storage Temperature
- -55 °C
- Environmental Parameters - Shock Tolerance (non-operating)
- 1500 g @ 0.5 ms half-sine
- Environmental Parameters - Vibration Tolerance (non-operating)
- 4.9 g @ 7-800 Hz
- Environmental Parameters - Vibration Tolerance (operating)
- 5 g @ 10-2000 Hz
- Expansion & Connectivity - Compatible Bay
- 2.5"
- Expansion & Connectivity - Interfaces
- 1 x SATA 6 Gb/s
- General - Capacity
- 4 TB
- General - Depth
- 100.2 mm
- General - Device Type
- Solid state drive - internal
- General - Features
- 24x7 continuous operation, 3D NAND Technology
- General - Form Factor
- 2.5"
- General - Height
- 7 mm
- General - Interface
- SATA 6Gb/s
- General - Weight
- 37.4 g
- General - Width
- 69.85 mm
- Manufacturer Warranty - Service & Support
- Limited warranty - 5 years
- Miscellaneous - Compliant Standards
- FCC, UL, TUV, BSMI, KC, VCCI, Morocco, RCM, CB Scheme, UKCA
- Performance - 4KB Random Read
- 87000 IOPS
- Performance - 4KB Random Write
- 83000 IOPS
- Performance - Drive Transfer Rate
- 600 MBps (external)
- Performance - Internal Data Rate
- 560 MBps (read) / 520 MBps (write)
- Performance - SSD Endurance
- 2500 TB
- Power - Power Consumption
- 100 mW (active) ¦ 3000 mW (read) ¦ 3000 Watt (write) ¦ 70 mW (sleep) ¦ 7 mW (DevSleep)
- Reliability - 24x7 Operation
- Yes
- Reliability - MTBF
- 2,000,000 hours
- Reliability - Recoverable Errors
- 1 per 10^17
